Floor Plan Abbreviations: What WIC, WH, W/D and 70+ More Mean

Floor plan abbreviations are short codes that architects, builders and real estate listings use to label rooms, fixtures and notes where the full words will not fit. The ones people ask about most: WIC means walk-in closet, WH (also written W/H) means water heater, W/D means washer and dryer, and CLG means ceiling. Below are more than 70 common abbreviations grouped by room, then how to read the dimensions and symbols around them, so you can read a builder's brochure, a listing plan or a full set of house plans.

What Are Floor Plan Abbreviations?

Floor plans are drawn small. At the usual 1/4 inch = 1 foot scale, a 5-foot closet is 1¼ inches wide on paper, and "WALK-IN CLOSET" in standard ⅛-inch lettering will not fit inside it. So drafters shorten labels to a few capital letters.

You will meet abbreviations in three places:

• Room labels: BR, BA, KIT, GR.
• Fixture and appliance tags: DW, REF, WH.
• Notes: AFF, TYP, VIF, instructions about how to read or build what is drawn.

There is no single list everyone uses. Architecture firms print an abbreviation list and a symbol legend on the first sheets of a drawing set (how to create a blueprint explains what else those sheets hold), while builder brochures are looser. The tables below cover the codes most common on US residential plans.

Common Floor Plan Abbreviations by Room

Variants separated by commas mean the same thing.

Bedrooms and Closets

Abbreviation	Meaning	Where you see it
BR, BDRM, BED	Bedroom	Often numbered: BR 2, BR 3
MBR, MSTR, PRI	Master or primary bedroom	The largest bedroom, with its own bath
WIC	Walk-in closet	In or beside the primary suite
CL, CLO	Closet (reach-in)	Bedrooms, halls, entries
LIN	Linen closet	Hallways and bathrooms
R&S, R/S	Rod and shelf	Inside closets

Bathrooms

Bathroom plans pack the most codes into the least space. If you are laying one out, the bathroom layout planner draws the fixtures with their clearances.

Abbreviation	Meaning	Where you see it
BA, BTH	Bathroom	2.5 BA = two full baths and a half bath
M.BA, MBA, PRI BA	Master or primary bathroom	Inside the primary suite
PDR, PWD	Powder room: toilet and sink only	Near living areas, for guests
WC	Water closet: the toilet, or a room just for it	Primary bathrooms
LAV	Lavatory: a bathroom sink	Vanity tops
VAN	Vanity	Counter and cabinet under the sink
SHWR, SH	Shower	Bathrooms
T, TUB	Bathtub	T/S = tub-shower combination
MC, MED	Medicine cabinet	Above the vanity
EF, EXH	Exhaust fan	Bathroom and laundry ceilings

Kitchen and Dining

Abbreviation	Meaning	Where you see it
KIT, K	Kitchen	Room labels
DW	Dishwasher	Next to the sink
REF, REFR, FRIG	Refrigerator	End of a counter run
R, RNG	Range: cooktop and oven in one	Counter run or island
OV, WO	Oven, wall oven	Tall cabinets
MW, MICRO	Microwave	Above the range or in a cabinet
GD, DISP	Garbage disposal	Under the sink
UC, U/C	Under-counter, as in UC fridge	Islands and bars
PAN, PANT, PTRY	Pantry	Next to the kitchen
DR, DIN	Dining room	Room labels
NOOK	Breakfast nook	Beside the kitchen

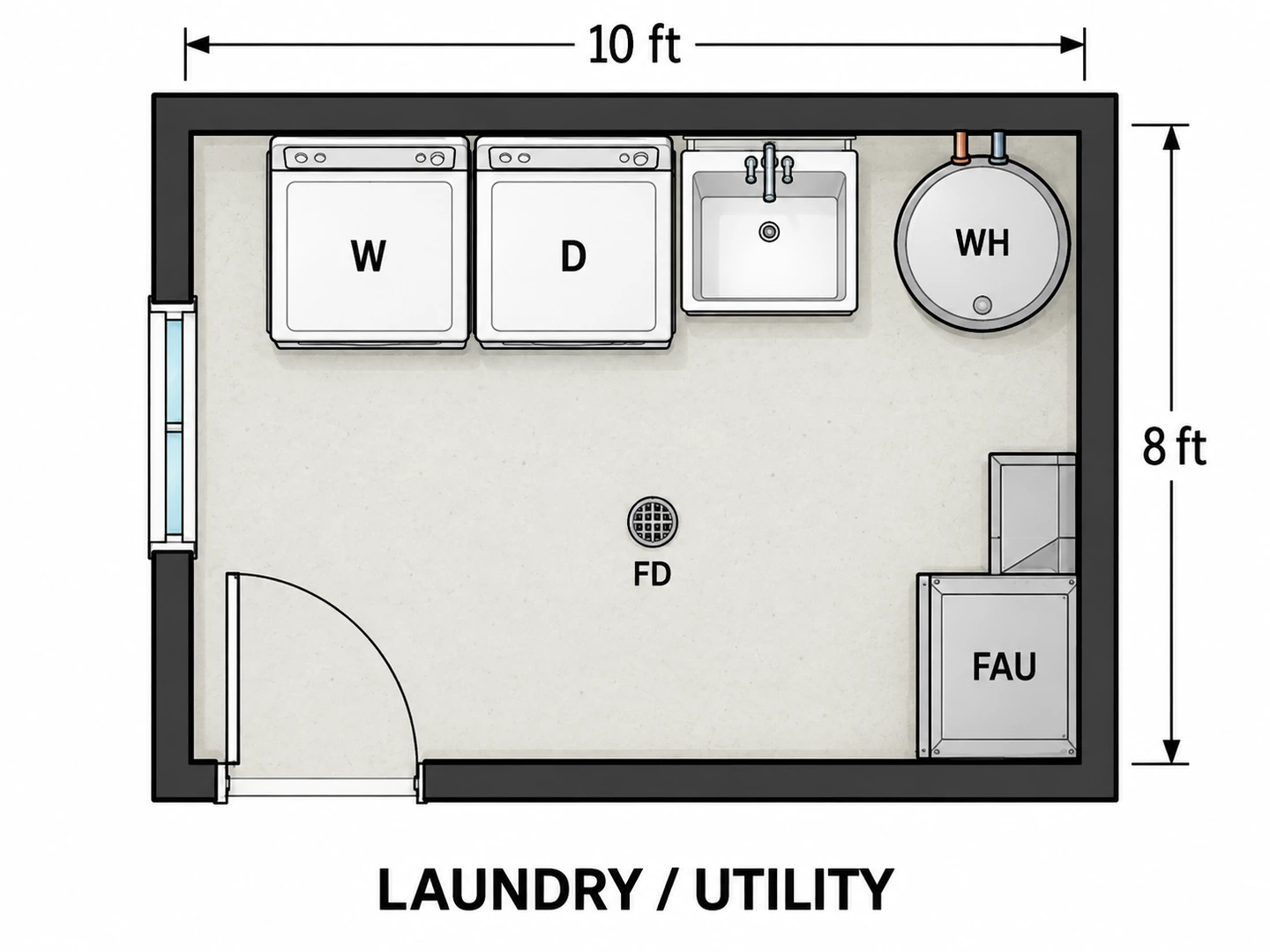

Laundry, Utility and Mechanical

Abbreviation	Meaning	Where you see it
LAU, LAUN, LDRY	Laundry room	Off the kitchen, garage or bedroom hall
W/D	Washer and dryer	W/D STACK = stacked pair
W, D	Washer, dryer drawn separately	Side by side in the laundry
UTIL	Utility room	Equipment and storage
WH, W/H	Water heater	Garage, basement, utility closet, attic
FAU, FURN	Forced-air unit or furnace	Closets, attics, garages, basements
HVAC	Heating, ventilation and air conditioning	Mechanical notes
AC, A/C, COND	Air conditioner or condensing unit	Outside, on a pad
FD	Floor drain	Laundries, garages, basements
EP, ELEC, PNL	Electrical panel	Garage or utility wall

Living Areas, Garage and Outdoors

Abbreviation	Meaning	Where you see it
LR, LIV	Living room	Near the entry
FR, FAM	Family room	Often beside the kitchen
GR	Great room: living and family space in one	Open-plan homes
DEN, OFF, OFC	Den, office	Near the entry or a quiet side
FOY, ENT	Foyer, entry	Inside the front door
MUD	Mudroom	Between garage and house
FP	Fireplace	Living and great rooms
STOR, STO	Storage	Garages, basements, under stairs
GAR	Garage	2-CAR GAR
HB	Hose bib: an outdoor faucet	Exterior walls
UP, DN	Stairs going up or down	Next to the stair arrow
OPEN TO BELOW, OTB	Two-story space, no floor on this level	Upper-floor plans

Door, Window and Electrical Abbreviations

Doors and windows are tagged with codes that point to a door or window schedule, a table listing each unit's size and type.

Abbreviation	Meaning	Where you see it
DR	Door	Notes and schedules
2868, 3068	Door size, width then height: 3068 is 3'-0" x 6'-8"	Door tags
SGD	Sliding glass door	Patio openings
PKT	Pocket door	Baths, closets, tight halls
BF, BI-FOLD	Bifold door	Closets
DH	Double-hung window	Window tags
SH	Single-hung window	Window tags
CSMT	Casement window	Window tags
XO, OX	Slider: X slides, O is fixed, seen from outside	Window and patio door tags
FX	Fixed window	Window tags
TEMP	Tempered (safety) glass	Near tubs, stairs and floors
EGRESS	Emergency escape window	Bedrooms and basements
GFCI, GFI	Ground-fault outlet with Test and Reset buttons	Near water, garages, outdoors
WP	Weatherproof outlet	Exterior walls
SD, CO	Smoke alarm, carbon monoxide alarm	Bedroom and hall ceilings
S, S3	Switch, three-way switch	Beside doors
240V	Dedicated 240-volt outlet	Dryer, range, EV charger

The four-digit door code is worth learning because it appears on plans and in stores alike: 2668 is 30 x 80 inches, 2868 is 32 x 80 and 3068 is 36 x 80. Window codes often follow the same width-then-height pattern, but manufacturers vary, so check the schedule. Standard door sizes lists the common widths and heights.

Drafting Notes: AFF, CLG, TYP, EQ and More

These are not rooms or objects. They change how you read the number or drawing next to them.

Abbreviation	Meaning	Example
AFF	Above finished floor	OUTLET 42" AFF
CLG	Ceiling	9'-0" CLG, VAULTED CLG
FF, FFL	Finished floor (level)	Where heights are measured from
PLT HT	Plate height: top of the wall framing	Sections and elevations
TYP	Typical: applies to every similar item	One shelf dimensioned, marked TYP
SIM	Similar	Details that apply with small changes
EQ	Equal: divide the space evenly	Windows spaced EQ
NTS	Not to scale	Diagrams and sketches
O.C.	On center	Studs at 16" O.C.
CL, ℄	Centerline	Dimensions to the middle of a wall or window
HDR	Header: beam over an opening	Framing notes
BM	Beam	Often drawn dashed
COL	Column	Open plans, basements, porches
R.O.	Rough opening	Framed opening for a door or window
(E), (N)	Existing, new	Remodel plans
VIF	Verify in field	Confirm on site before building
SF, SQ FT	Square feet	Room and total areas
ELEV	Elevation: a wall-face drawing or a height level	Drawing titles and notes

What WIC, WH, W/D and CLG Mean on a Floor Plan

These four cause most of the questions people have when they first read a plan.

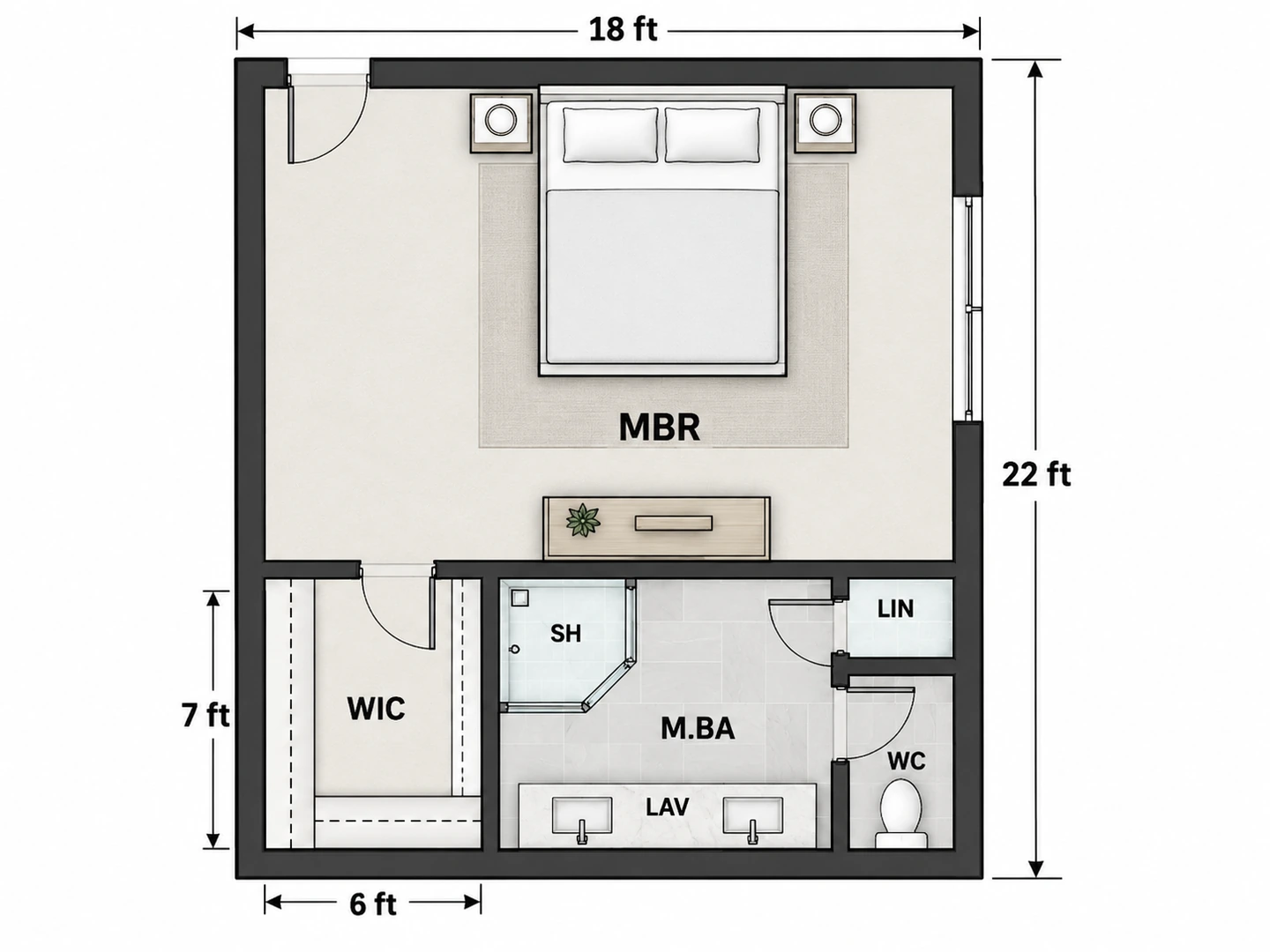

WIC Meaning in a Floor Plan

WIC means walk-in closet: one big enough to step into, unlike a reach-in closet (CL) that you open from the room. Hanging clothes need about 24 inches of depth and you need roughly 24 to 36 inches to walk, so a walk-in with a rod on one side starts at about 4 to 5 feet wide, and one with rods on both sides at about 6 to 7 feet. A WIC usually signals the primary suite; walk-in closet dimensions covers the common layouts.

What Is WH on a Floor Plan?

WH, also written W/H, means water heater. A tank model is usually drawn as a circle about 2 feet across, labeled WH, in a garage, basement, utility closet or attic, often next to the furnace (FAU). A tankless unit hangs on a wall and is drawn as a small rectangle, usually labeled TANKLESS.

Two cautions: in fixture notes, WH can occasionally mean wall-hung, as in a wall-hung sink. And W/ on its own simply means "with", as in R&S W/ 2 SHELVES.

What Does W/D Mean?

W/D means washer and dryer, or the space and hookups for them. A side-by-side pair of full-size machines takes roughly 5 to 6 feet of wall, while a stacked pair (W/D STACK) fits in about 30 to 36 inches of width. Planning one from scratch? The laundry room floor plan tool lays out machines, sink and folding counter.

What Does CLG Mean on a Floor Plan?

CLG means ceiling. A note such as 9'-0" CLG gives that room's ceiling height. VAULTED CLG is a sloped ceiling, TRAY CLG has a recessed center, and COFFERED CLG is a grid of beams; dashed lines often show where the ceiling changes. Most new homes have 8- or 9-foot ceilings; standard ceiling height explains what each allows.

Abbreviations That Mean Two Things

Short codes get reused. When one could mean two things, look at where it sits.

Swipe left or right to see the full table →

Code	Meaning 1	Meaning 2	How to tell
CL	Closet	Centerline	In a small room: closet. On a dimension line: centerline
DR	Door	Dining room	Room label: dining. By an opening or in a schedule: door
SH	Shower	Single-hung window or shelf	Bathroom, window tag or closet
R	Range	Riser or radius	Kitchen: range. 14R at a stair: 14 risers
T	Tub	Tread or tempered glass	Bathroom, stair note or window tag
D	Dryer	Depth	Laundry: dryer. W x D x H: depth
PL	Property line	Plate (top of wall framing)	Site plan or section
WD	Wood	Washer-dryer	Material note or laundry

How to Read Floor Plan Dimensions

US plans write dimensions in feet and inches with a dash between them, so the numbers cannot run together: 12'-6" is 12 feet 6 inches, and 11'-0" is exactly 11 feet.

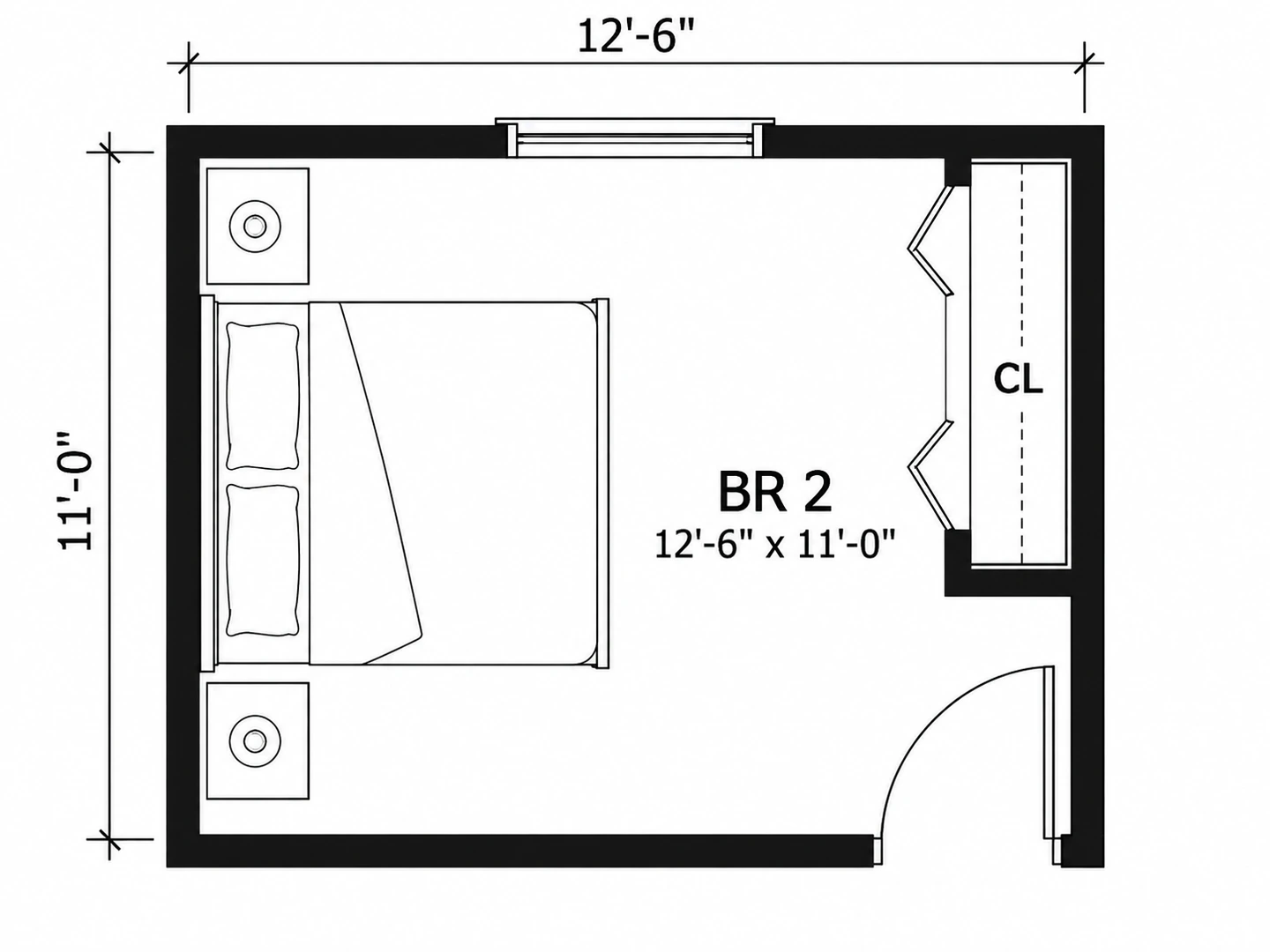

A room label such as BR 2 above 12'-6" x 11'-0" gives the two sides of the room. There is no fixed rule for which comes first; many plans list the left-to-right dimension first, but the dimension strings settle it. Label sizes on brochure and listing plans are usually rounded interior sizes that may leave out closets, so treat them as approximate.

Written on the plan	Means	In decimal feet
12'-6"	12 feet 6 inches	12.5
11'-0" or 11'	11 feet	11.0
10'-9"	10 feet 9 inches	10.75
13'-4"	13 feet 4 inches	13.33
3810 (metric)	3,810 mm, the same as 12'-6"	12.5
42" AFF	42 inches above the finished floor	3.5

Construction drawings add dimension strings: thin lines with tick marks and the measurement written above. Outside the plan they come in tiers, with the overall length farthest out, then wall segments, then openings. In wood-frame houses, doors and windows are usually located to their centerlines; the general notes often say whether walls are measured to the framing or to their centers.

For area, convert to decimal feet and multiply: BR 2 at 12'-6" x 11'-0" is 12.5 x 11 = 137.5 square feet. For L-shaped rooms or whole floors, the square footage calculator does the math.

How to Read Floor Plan Symbols

Abbreviations name things; symbols draw them:

• Walls: the thickest lines, often filled solid or hatched.
• Doors: a gap, a line for the door and a quarter-circle swing arc.
• Windows: thin parallel lines inside the wall.
• Stairs: parallel treads with an arrow and UP or DN.
• Dashed lines: things above the cut, such as upper cabinets and beams.
• Fixtures and appliances: simple outlines, such as an oval toilet or a box marked REF.
• Electrical: a circle with two lines through it for an outlet, S for a switch.

On a professional set, the legend explaining every symbol and abbreviation is usually on the cover sheet or a general notes sheet at the front. For a full illustrated list, see our guide to floor plan symbols.

How to Read a Floor Plan Step by Step

1. Find the title, scale and north arrow. They tell you which floor you are on, how big it is and which way the windows face.
2. Read the legend and abbreviation list if the set has one. It overrides any list online, this one included.
3. Start at the front door and walk the plan, noticing which rooms you pass through to reach others.
4. Read each room label and size, and picture your furniture in it; average bedroom size shows which beds fit.
5. Check doors, windows and stairs: swing directions, and whether stairs go UP or DN.
6. Read the notes: CLG heights, AFF heights and TYP notes hold details that matter.
7. Compare floors. Stairs and plumbing walls should line up from level to level.

Want to draw one yourself? How to draw a floor plan covers measuring, scale and labels, and our floor plan maker generates a labeled plan from a description.

Frequently asked questions

What does WIC mean on a floor plan?

WIC means walk-in closet, a closet big enough to step into, usually part of the primary bedroom. One with hanging on one side starts at about 4 to 5 feet wide; with hanging on both sides, about 6 to 7 feet.

What does WH or W/H mean on a floor plan?

Both mean water heater, usually drawn as a circle about 2 feet across in a garage, basement, utility closet or attic, often beside the furnace. In a fixture note WH can occasionally mean wall-hung.

What does CLG mean on a floor plan?

CLG means ceiling. A note such as 9 ft CLG gives the ceiling height, and VAULTED, TRAY or COFFERED CLG describes its shape.

What does W/D mean on a floor plan?

W/D means washer and dryer, or the space and hookups for them. W/D STACK means a stacked pair. A side-by-side pair needs roughly 5 to 6 feet of wall.

What does PDR mean on a floor plan?

PDR means powder room, a half bath with a toilet and sink but no tub or shower, usually near the living areas for guests. Some plans write PWD.

What does TYP mean on a floor plan?

TYP means typical: the note or dimension applies to every similar item on the drawing, so a shelf dimensioned once and marked TYP means all matching shelves are the same.

Where are the symbols for a set of plans located?

In the legend, usually on the cover sheet or a general notes sheet at the front of the set, along with the abbreviation list. Some sets repeat a short legend on each sheet; brochure plans often have none.

How do you read the dimensions on a floor plan?

Dimensions are in feet and inches, written with a foot mark, a dash and an inch mark. Room labels give two sides of the room; dimension strings give exact lengths. Divide inches by 12 to get decimal feet before multiplying for area.
