Feng Shui Bedroom Layout Generator
Enter the room size and the feng shui bedroom layout generator places the bed diagonal from the door, against a solid wall.
Plan My Feng Shui BedroomFeng Shui Layout Generator for Bedrooms and Offices
Choose the room, enter its size, mark the door and window in the notes and pick a drawing style.
Commanding position
12×14 ft · Furnished 2D
Feng Shui Bedroom Layout Examples
Three bedrooms laid out by the classic rules, each from a short brief or the empty room. Tap a preset in the generator to start from one.

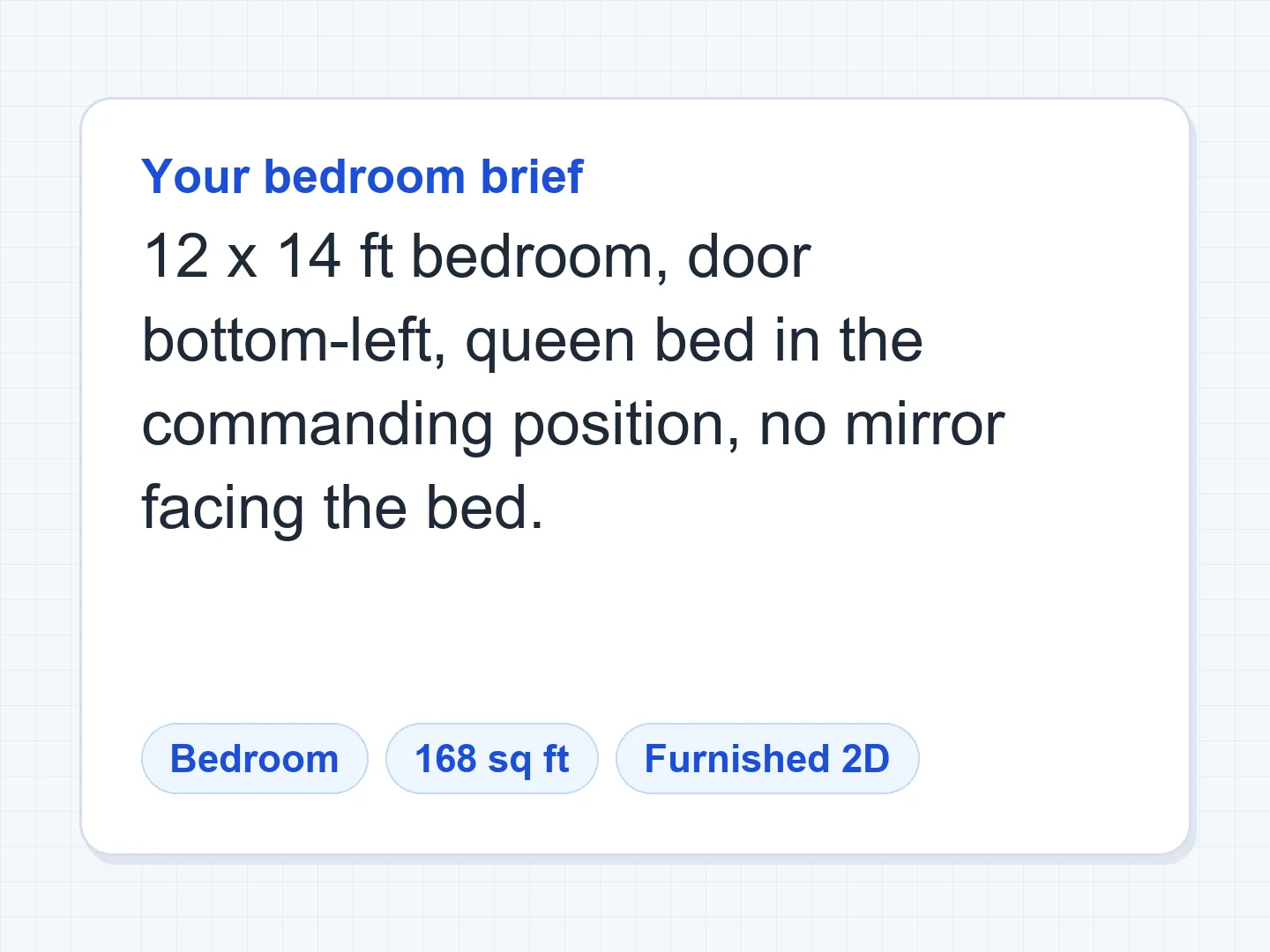

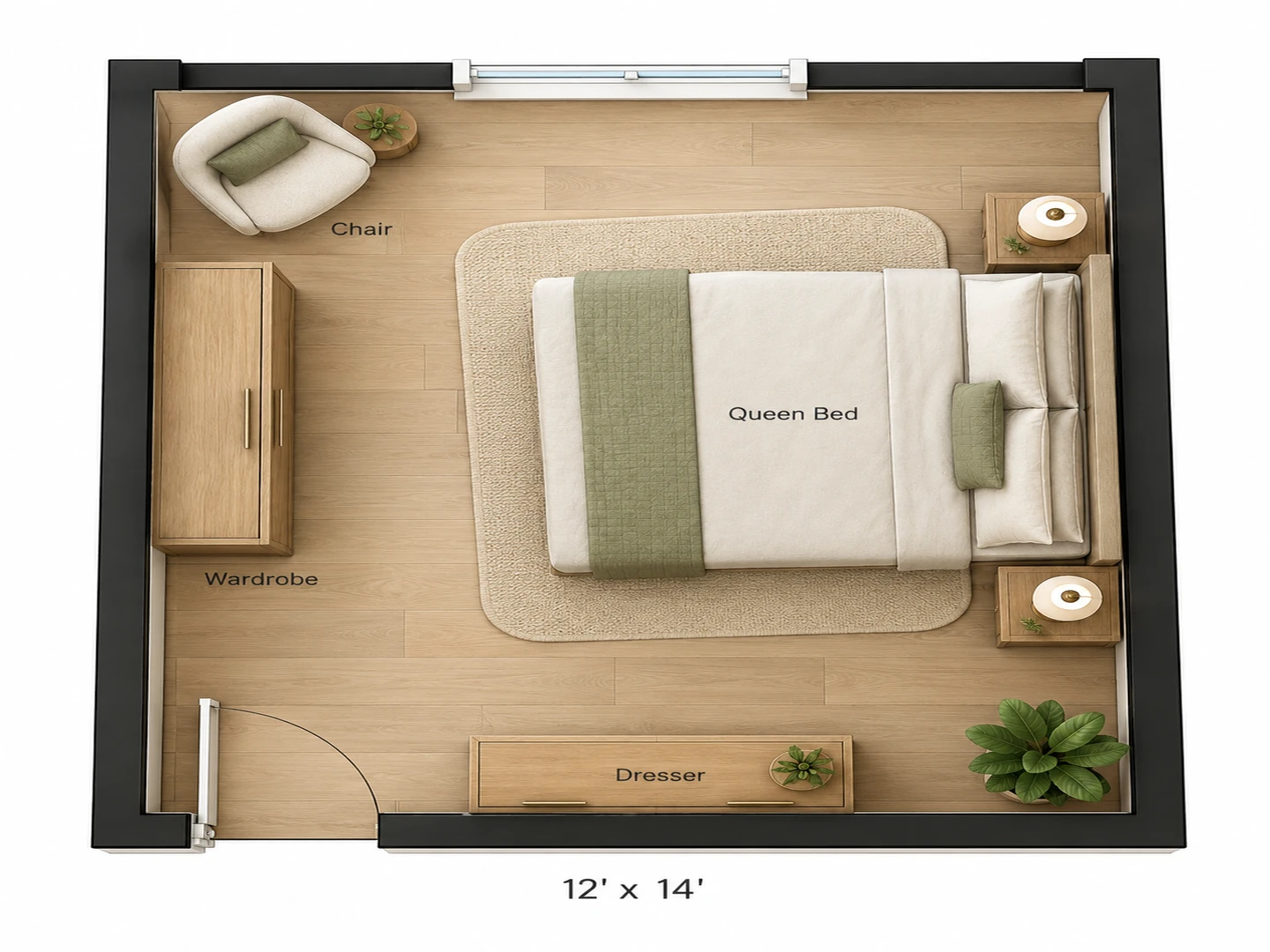

Before After 12×14 ft bedroom: queen bed diagonal from the door, headboard on a solid wall

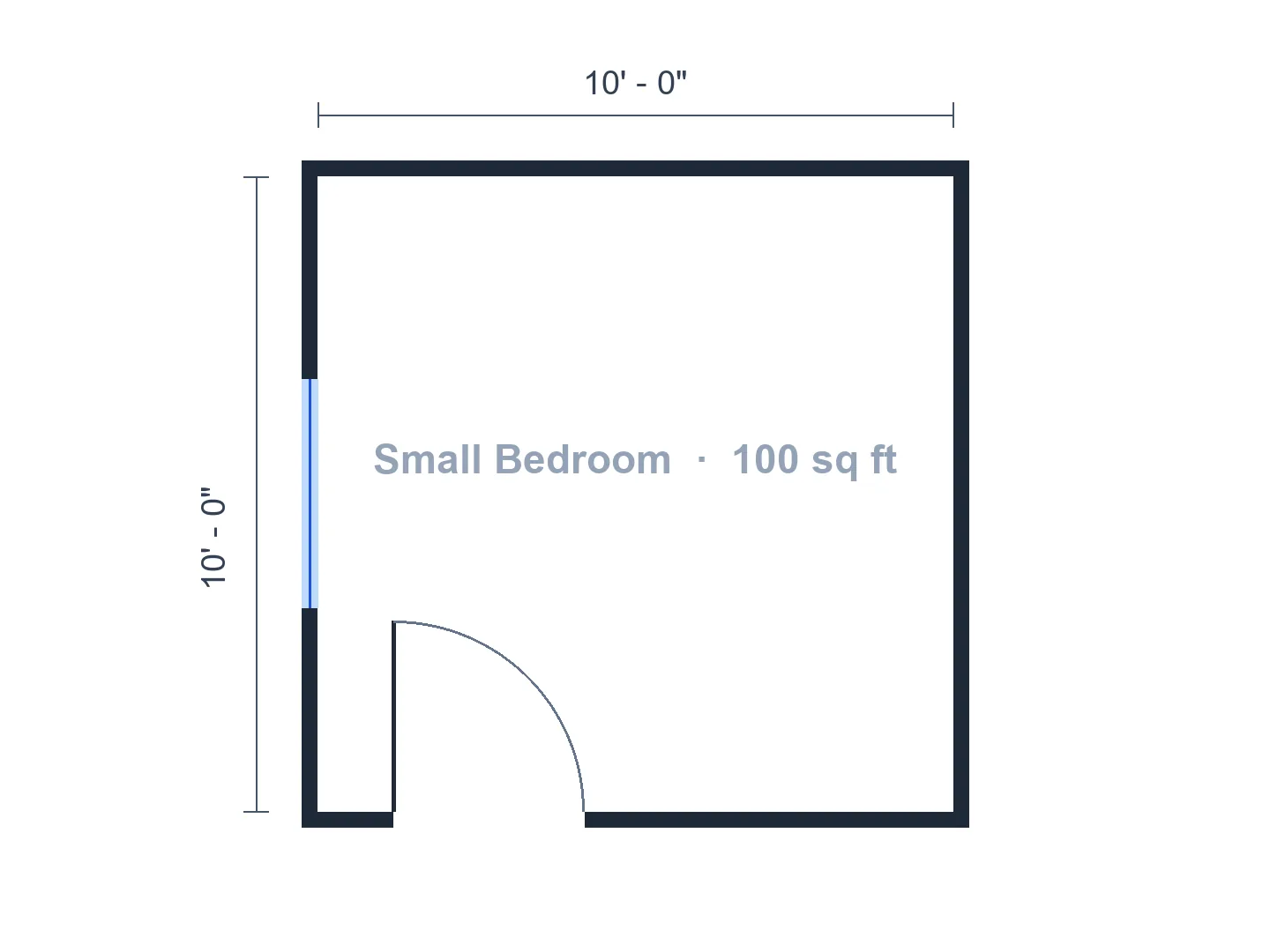

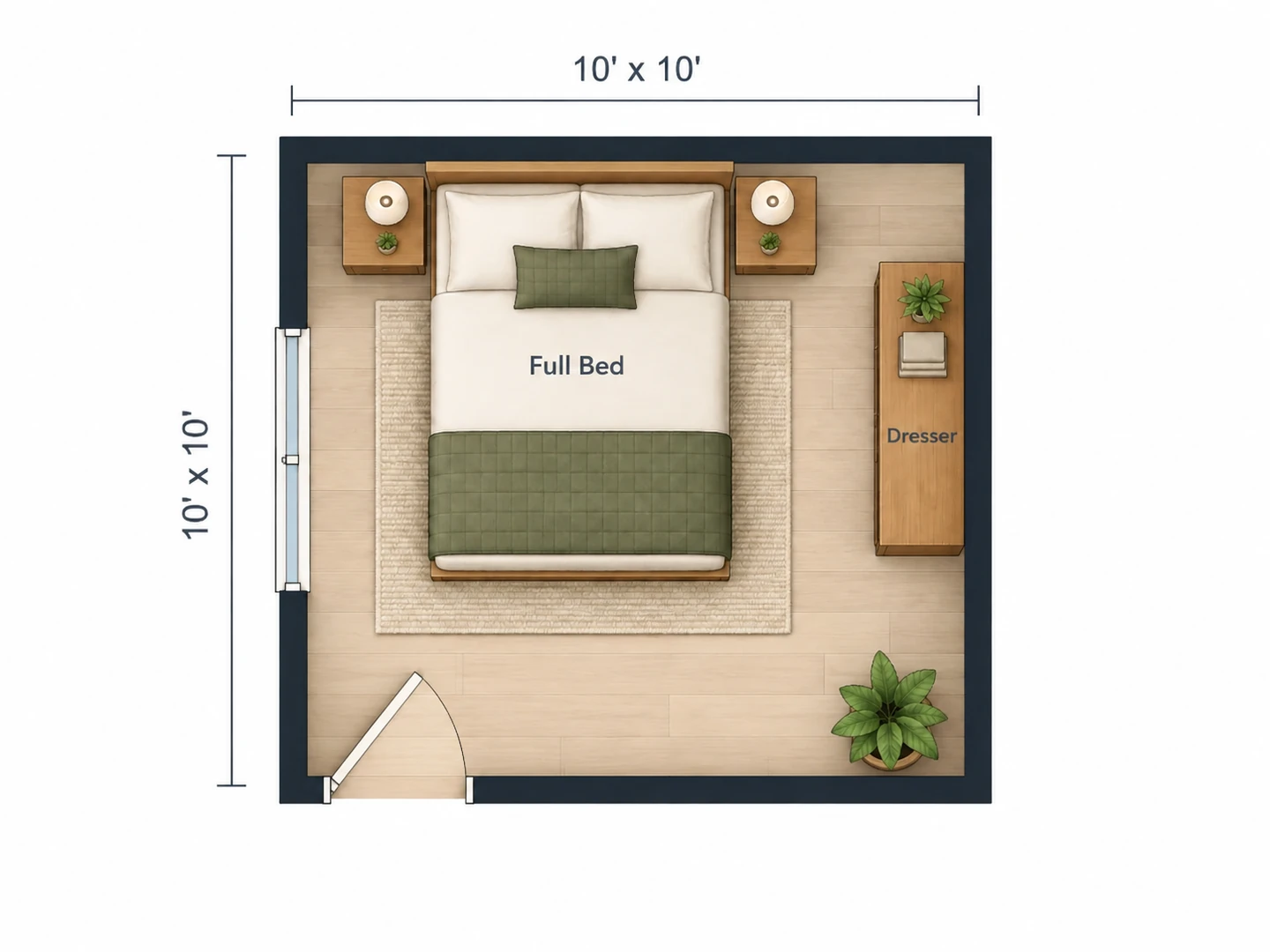

Before After 10×10 ft small bedroom: full bed in the commanding position, balanced nightstands

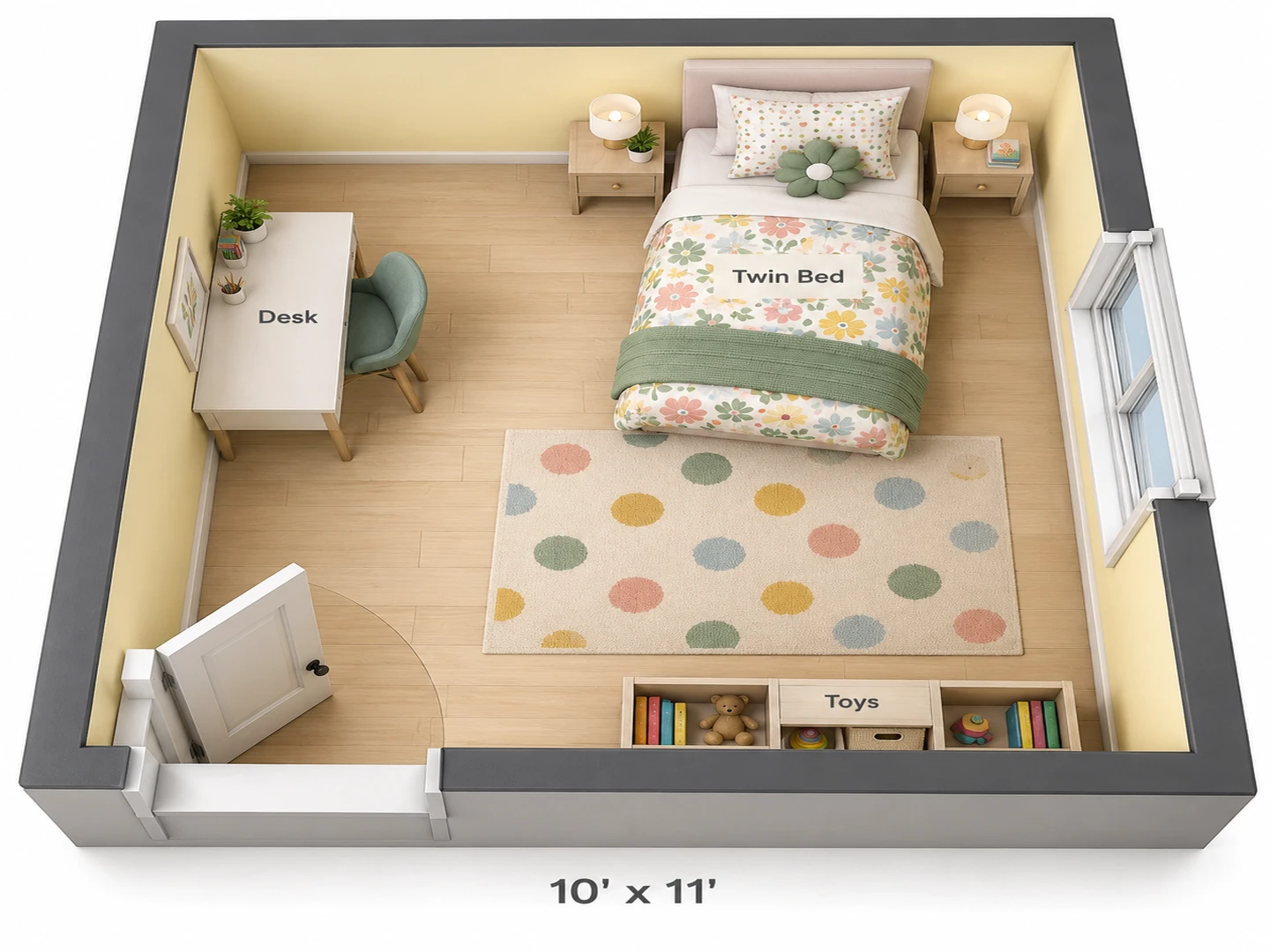

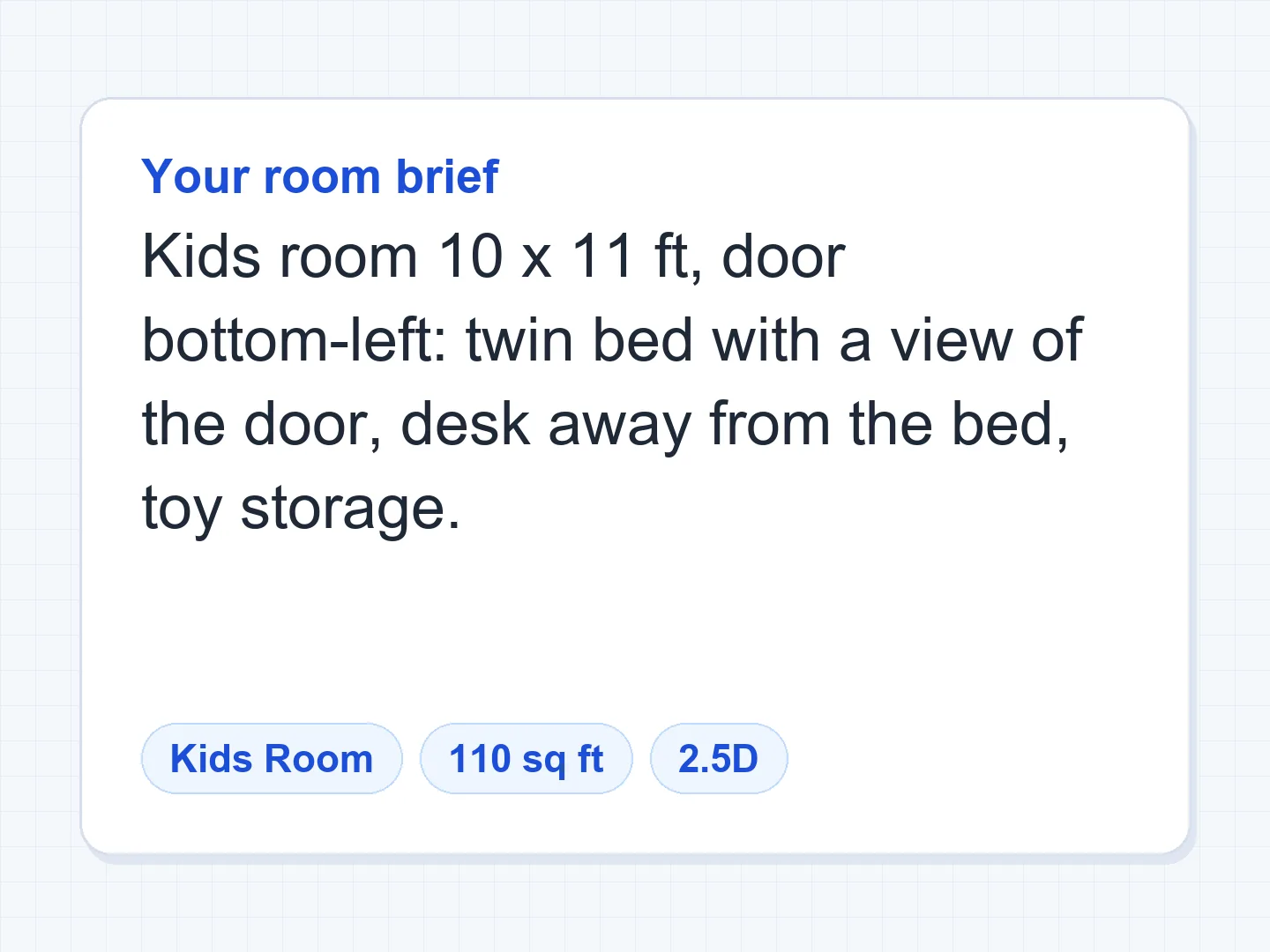

Before After 10×11 ft kids room: twin bed with a view of the door, desk away from the bed
A traditional approach

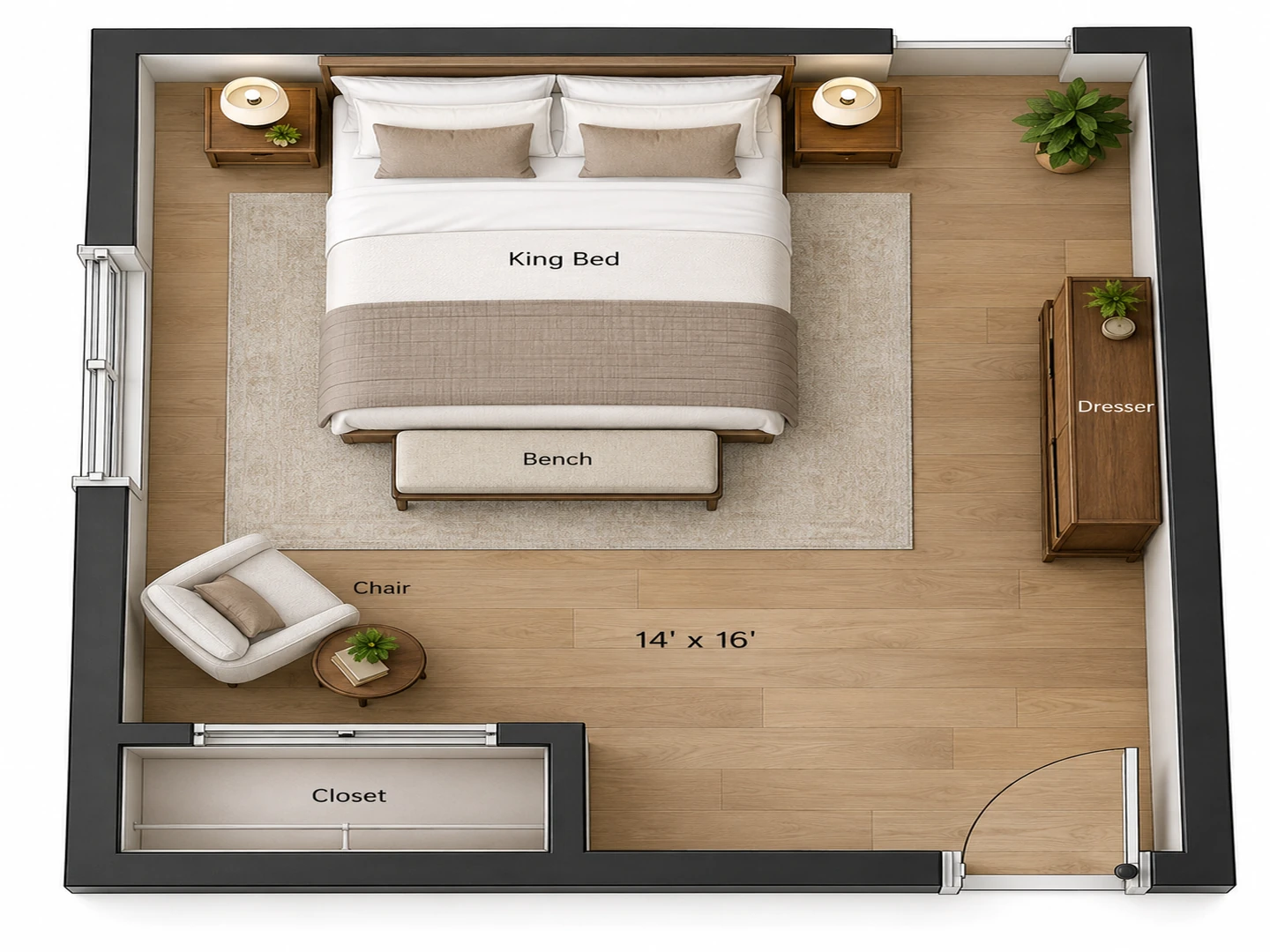

What Is a Feng Shui Bedroom Layout?
Feng shui is a traditional Chinese approach to arranging buildings and rooms. In a bedroom it comes down mostly to the bed: the commanding position, where you can see the door from the pillow without lying directly in line with it; a solid wall behind your head; balance on both sides; nothing heavy hanging over the bed; and a calm, uncluttered path from the door.
Many of these rules overlap with plain good planning: you see who comes in, a window at your head brings drafts and early light, and both sleepers can get out of bed without climbing over each other. This generator applies them as layout rules. It makes no claims about health or luck, and it does not cover the bagua map, element colors or personal directions. What you get is a planning image (PNG) with approximate sizes, not a measured plan.
- Bed in the commanding position, diagonal from the door
- Headboard on a solid wall, not under a window
- Balanced nightstands and lamps, no mirror facing the bed
- Bedrooms, kids rooms, home offices and living rooms
How to Arrange a Bedroom With Feng Shui
Mark the door, windows and walls
Enter the floor area and the wall lengths, then say where the door is and which way it swings, and where the windows, closet and any en suite door sit. Those decide which walls can take the bed.
Name the bed and what goes with it
Give the bed size and list the rest: nightstands, dresser, a chair, a desk if it has to share the room. Mention anything to avoid, such as mirrored closet doors or a radiator under the only free wall.
Generate and check from the bed
Look at the result as if you were lying in bed: can you see the door, is the headboard on solid wall, can both sides get in? Then try the bed on another wall and compare the two versions in My Projects.
Feng Shui Bed Placement, Done by the Rules
The classic bedroom guidelines are applied to every layout automatically. New accounts get free credits to try them.
The Commanding Position, Worked Out for Your Room

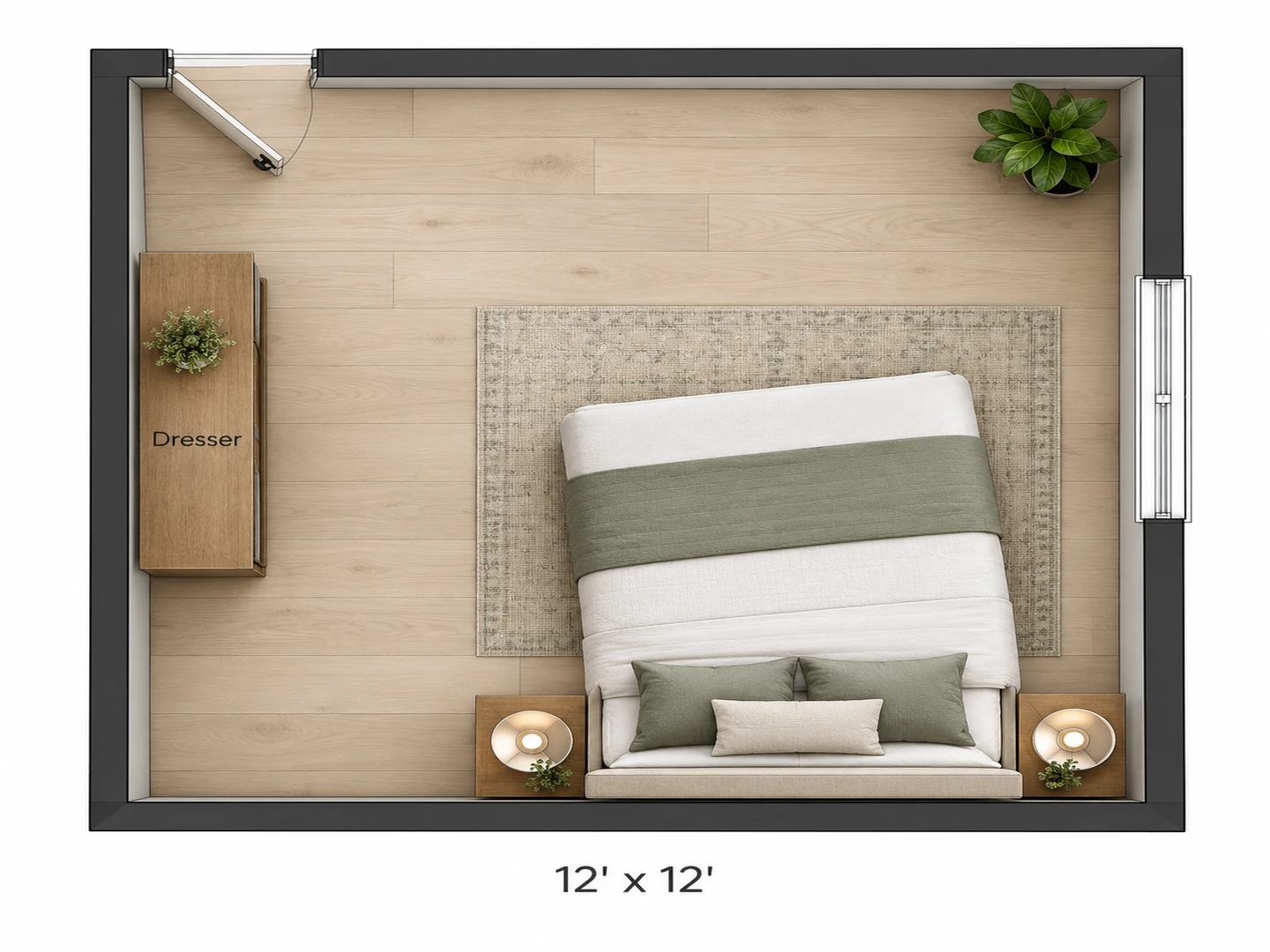

The commanding position is usually on the wall diagonally across from the entrance. In this 12 × 12 ft room the door is in the top-left corner, so the headboard goes on the bottom wall, shifted toward the far side: from the pillow you see the door at an angle, and your feet do not point out of it. The generator works this out from the door and window you describe.
Find my bed wall
A Small Bedroom Feng Shui Layout That Still Fits

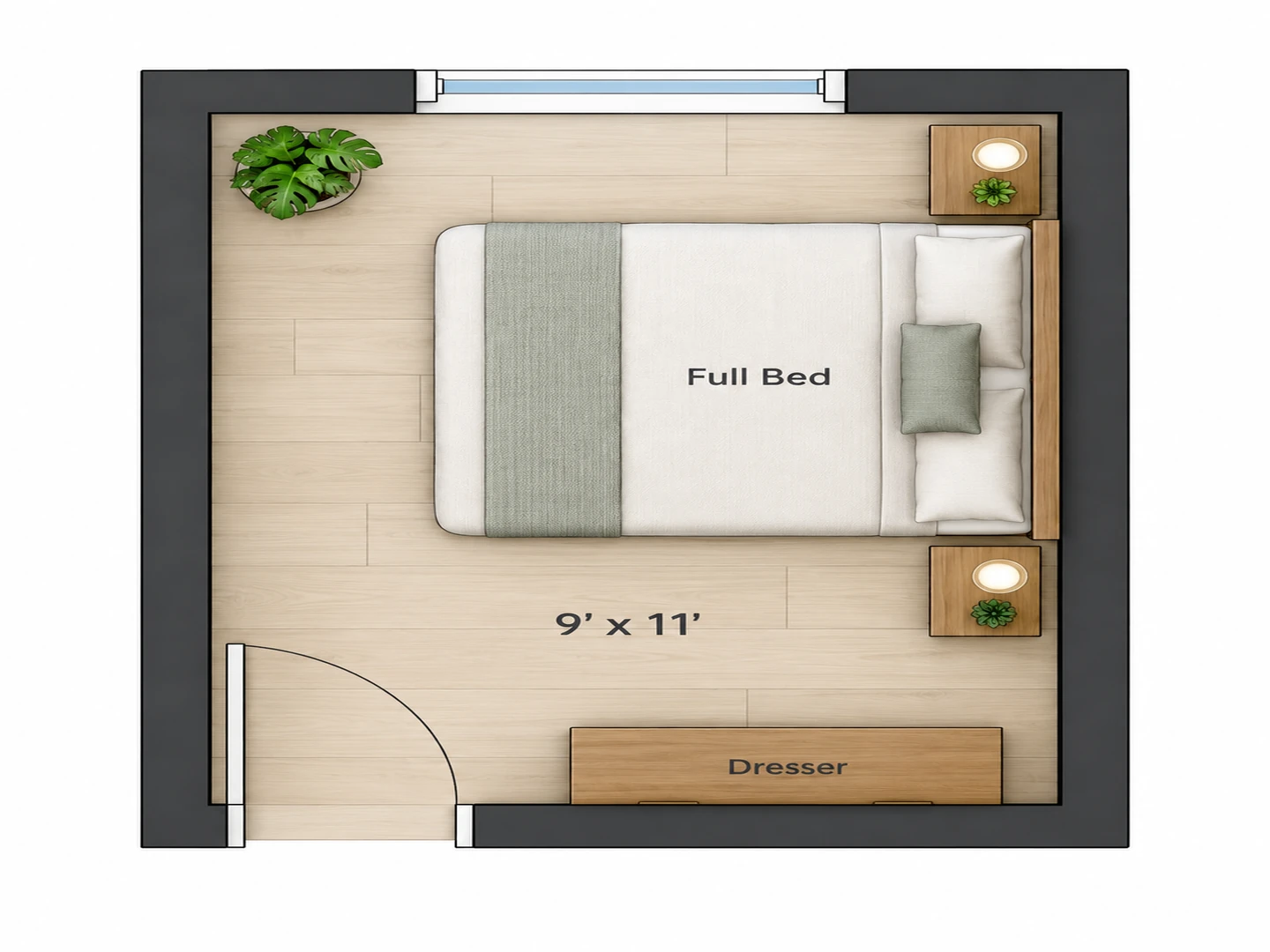

In a small room the best wall often holds the window, or the bed only fits one way. In this 9 × 11 ft room the window takes the short wall, so the headboard goes on the long wall facing the door at an angle, with about 30 in left to walk past the foot of the bed. A full bed (54 × 75 in) instead of a queen gives back 6 in of width and 5 in of length, which can be the difference between balance on both sides and a bed pushed into the corner.
Average bedroom size
A Feng Shui Office Layout Generator, Too

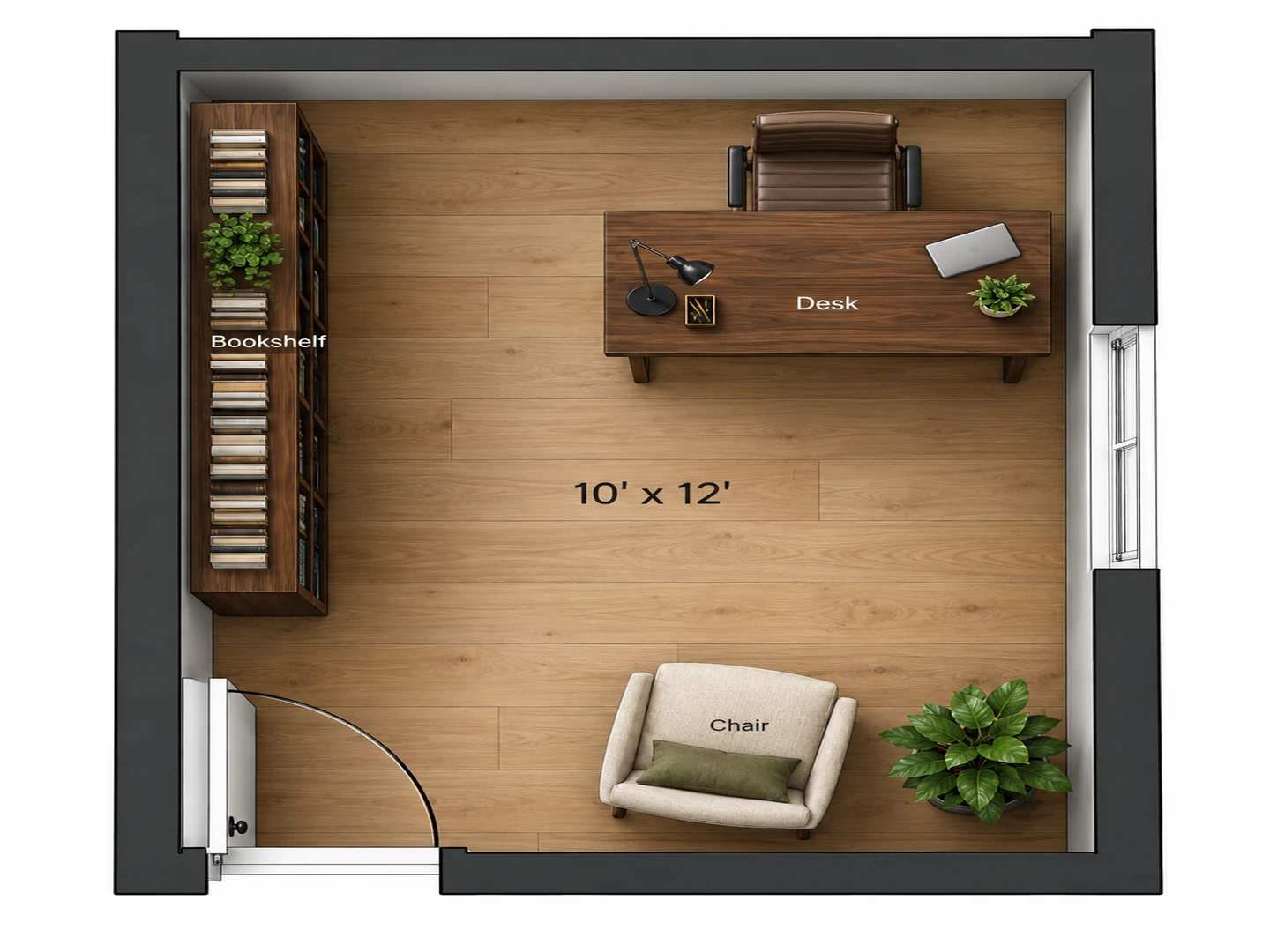

The same idea applies to a desk: sit facing into the room with a view of the door, keep a solid wall behind your chair, and put the window to one side so it does not glare on the screen. Choose Home Office and the desk is placed that way. For a whole office floor with rows of desks and meeting rooms, use the Office Floor Plan maker.
Office floor plan
See the Feng Shui Bedroom in 3D

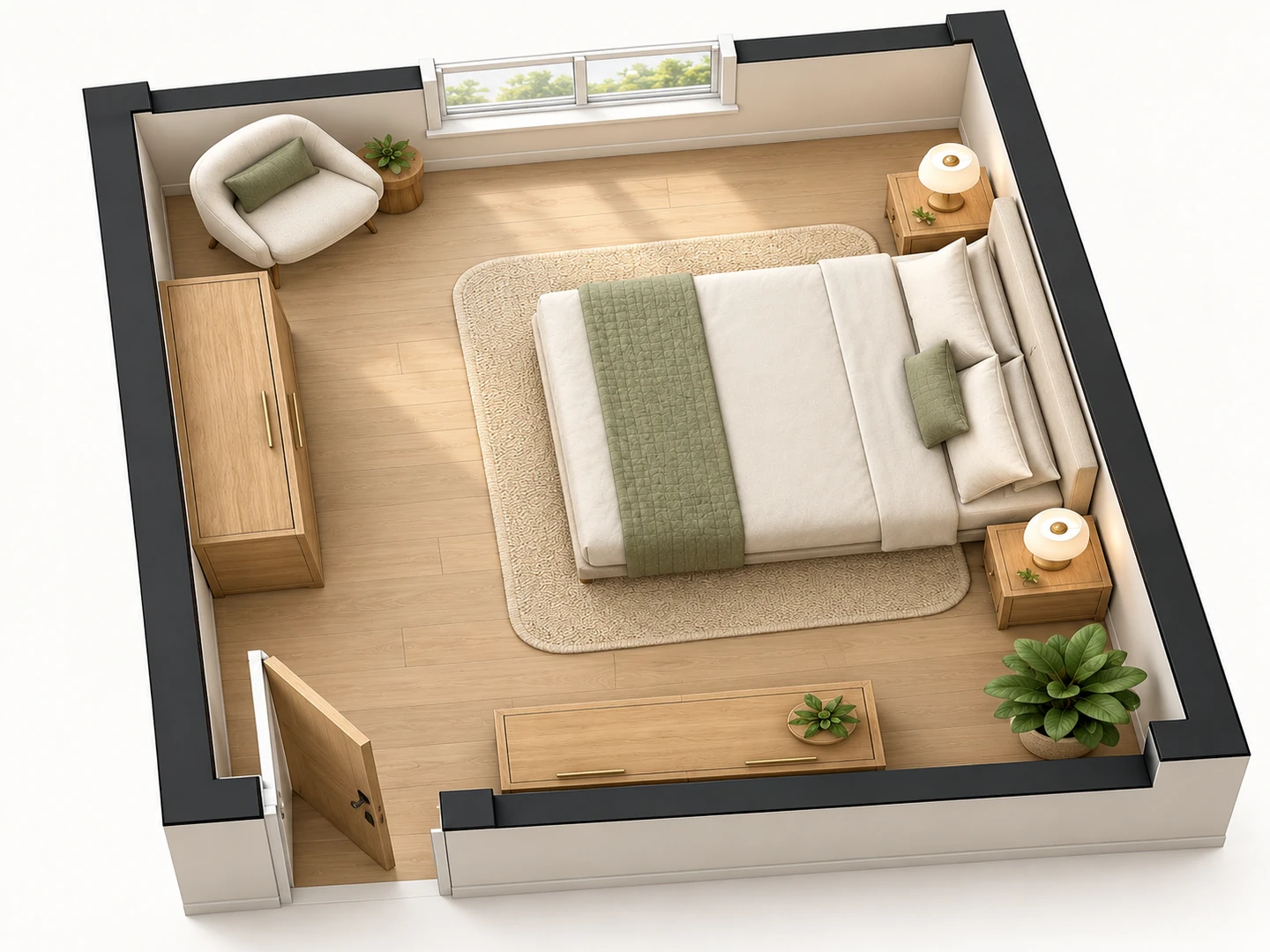

Switch the style to 3D Isometric or 2.5D and the same layout comes back with the walls up: the headboard against its wall, a lamp on each nightstand, the clear path from the door. It is the easiest way to show a partner what you have in mind before anyone lifts the mattress.
3D Room PlannerBed placement
Feng Shui Bed Placement: Do’s and Don’ts
Each traditional guideline, and the everyday reason it still makes sense.
| Guideline | Do | Avoid | Practical reason |
|---|---|---|---|
| Commanding position | Bed diagonal from the door, with the door in view from the pillow | Feet pointing straight out the door, or the door behind your head | You see who comes in without turning, and hallway light and noise do not land on your face |
| Headboard | Against a solid wall, with a sturdy headboard | Under a window, or on a wall shared with a toilet | Fewer drafts, less early light and less plumbing noise at your head |
| Balance | A nightstand and lamp on each side, with 24–36 in of floor beside the bed | One side of the bed pushed against a wall | Both sleepers can get in and out without climbing over each other |
| Mirrors | Mirrors inside the closet door or on a wall that does not face the bed | A mirror facing the bed, including mirrored closet doors | Catching your own movement in the dark is startling, and a mirror bounces streetlight onto the bed |
| Overhead | A clear ceiling above the bed | A beam, a heavy shelf or a ceiling fan directly over the bed | Nothing can fall on you, and the space overhead feels calmer |
| Path and clutter | A clear path of about 36 in from the door to the bed | Boxes stacked under the bed or in the walkway | A clear route is safer at night and the room is easier to clean |
| Flow | The bed out of the straight line between the door and a window or a second door | The bed between two doors, or in the path to the bathroom | Less draft and less foot traffic past the bed |
| Work and screens | Desk and TV out of sight from the bed, or covered at night | A desk that faces the bed | Keeps the bedroom for rest and the glow of screens out of view |
Feng shui is a traditional practice, and schools differ on details. The practical reasons are ordinary design advice, not promises of better sleep or luck.
Room by room
Where to Put the Bed in a Feng Shui Bedroom, by Room Shape
Common situations and the usual answer. Sizes are typical examples; your room may differ.
| Room situation | Example size | Where to put the bed | Watch out for |
|---|---|---|---|
| Small square bedroom | 10 × 10 ft (3 × 3 m) | On the wall diagonal from the door, centered between two nightstands | A queen that leaves less than 24 in on a side; a full bed may balance better |
| Rectangular room, door in a corner | 12 × 14 ft (3.7 × 4.3 m) | The far wall diagonal from the door: the classic commanding position | The foot of the bed lining up with the doorway |
| Door in the middle of a long wall | 11 × 13 ft (3.4 × 4 m) | A short wall on the far side, or the opposite long wall offset from the door | Never directly across from the doorway |
| Window on the best wall | Any size | The next solid wall with a view of the door; if there is none, a tall solid headboard and heavy curtains | Drafts and early light at your head |
| Narrow bedroom | 9 × 12 ft (2.7 × 3.7 m) | Headboard on a long wall so the bed spans the width, with the door in view | At least 24 in between the foot of the bed and the opposite wall |
| En suite or a second door | 14 × 16 ft (4.3 × 4.9 m) | A wall that sees both doors without lining up with either | The bathroom door left open toward the bed |
| Sloped ceiling or exposed beam | Attic bedrooms | Headboard on the tallest wall, with the beam not over the bed | A low ceiling right over your head |
Keep about 24–36 in (60–90 cm) beside the bed and about 36 in (90 cm) for the main path from the door, whatever the room shape.
Who Uses the Feng Shui Bedroom Layout Generator
Moving into a new place
Decide on the bed wall before the movers carry the frame in, while it is still easy to change. Check the room against your bed size first; if the bedroom is smaller than you thought, the full-bed or narrow-nightstand version may be the one that balances.
Rearranging the bedroom you have
If you would rather not buy anything, take a wide photo of the room and let Rearrange My Room move your own furniture into a new arrangement. Plan the feng shui version here first, so you know which wall the bed should end up on.
Home offices and dorm rooms
A desk follows the same rule as a bed: face into the room, back to a wall. In a dorm the beds rarely move far, but where the desk sits and which bed takes the far wall can still follow the commanding idea.
Feng Shui Bedroom Layout FAQ
You can try it free: new accounts get free credits, and each layout uses 10 credits. For more layouts, buy a credit pack or subscribe.
It is the spot where you can see the door from the bed (or the desk) without lying or sitting directly in line with it, usually diagonally across the room from the entrance, with a solid wall behind you. It is the first rule this generator applies to every bedroom.
On a solid wall diagonal from the door, where you can see the entrance from the pillow, with space and a nightstand on both sides. Avoid the wall under a window, the spot directly in line with the door, and anywhere a beam, a shelf or a mirror sits over or opposite the bed.
Seeing the door from bed is the goal. What tradition avoids is the bed directly in line with the doorway, with your feet pointing out of it. If the room leaves no other choice, a solid footboard or a bench at the foot of the bed is the usual compromise.
Put the bed on the wall diagonal from the door if it fits with about 24 in on each side; if it does not, a full bed or narrow nightstands often restore the balance. Keep the path from the door clear, choose a dresser that fits beside the closet rather than across from the bed, and skip a mirror that faces the bed.
Feng shui prefers a solid wall behind the headboard, and so does common sense: a window at your head means drafts, early light and street noise. If it is the only wall that works, use a tall, solid headboard and heavy curtains, and leave a small gap between the bed and the wall.
Yes. Choose Home Office and the generator places the desk in the commanding position: facing into the room with a view of the door, a solid wall behind the chair and the window to one side. It also works for a kids room or a living room; for the sofa, say in the notes that you want its back to a wall and a view of the entry.
Feng shui is a traditional practice, not a science, and this tool makes no promises about health, sleep, luck or relationships. Many of its bedroom rules match practical design advice, though, so the layouts make sense either way. Bagua maps, element colors and personal directions are not part of what it draws.
